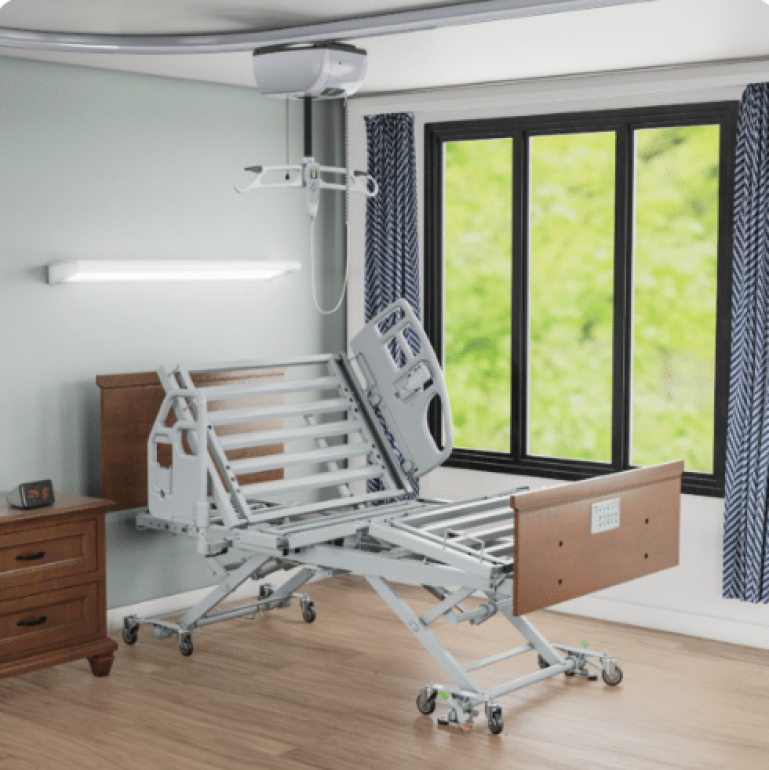

Advanced hospital bed with built-in width expansion (39"–42"), ultra-low height, and one-touch Trendelenburg. Ideal for high-acuity homecare. Optional scale and bed exit alarm available.  View more

Product Order Request

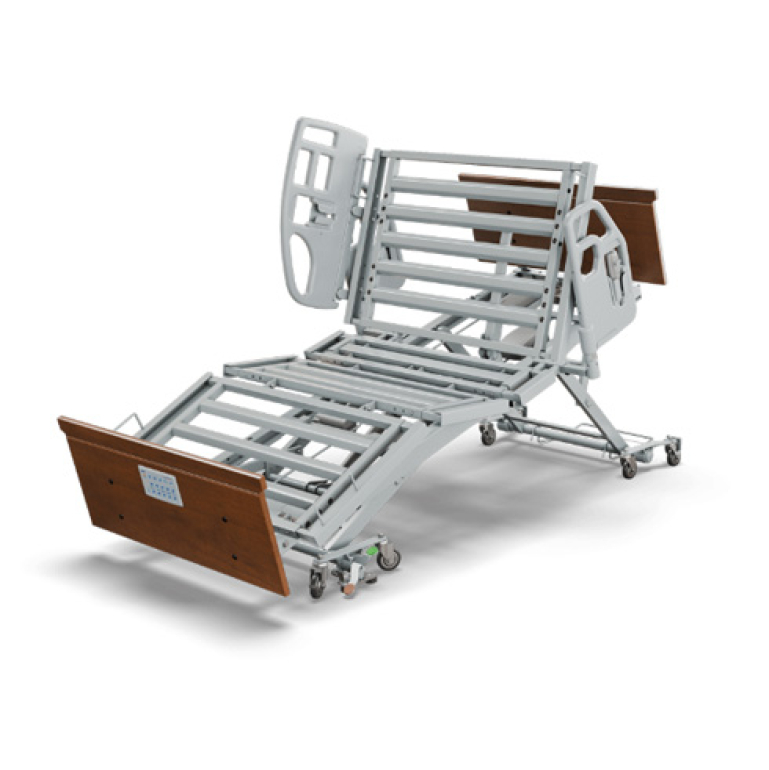

The Span ReadyWide Bed is an advanced, full-electric hospital bed designed for maximum patient safety, comfort, and clinical versatility. With its built-in width and length expansion, ultra-low positioning, and effortless repositioning features, the ReadyWide is ideal for high-acuity care in both home and facility settings.

Unlike standard adjustable beds, the ReadyWide comes with integrated width expandability from 39" to 42", allowing more room for patient comfort and reducing fall risk. The RollBack™ in Place design minimizes shear and friction when the head section is raised, while StayPut™ frame technology keeps the head and foot sections aligned for fewer patient shifts. A one-touch Trendelenburg feature and optional integrated scale and bed exit alarm add even more clinical functionality.

Key Features:

  • Integrated Width Expansion: Easily adjust width from 39" to 42" without tools.

  • StayPut™ Frame: Keeps head and foot alignment stable, reducing need for repositioning.

  • RollBack™ in Place: Reduces shearing and skin trauma during backrest elevation.

  • Low Height Safety: Ultra-low 7" height reduces fall risk.

  • Length Expansion Ready: Accommodates 80", 84", or 88" mattress lengths.

  • One-Touch Trendelenburg/Reverse Trendelenburg: Supports advanced positioning with a single control.

  • Optional Integrated Scale & Exit Alarm: Enhances monitoring and safety.

  • 600 lb Weight Capacity: Designed for safe use with a wide range of patients.

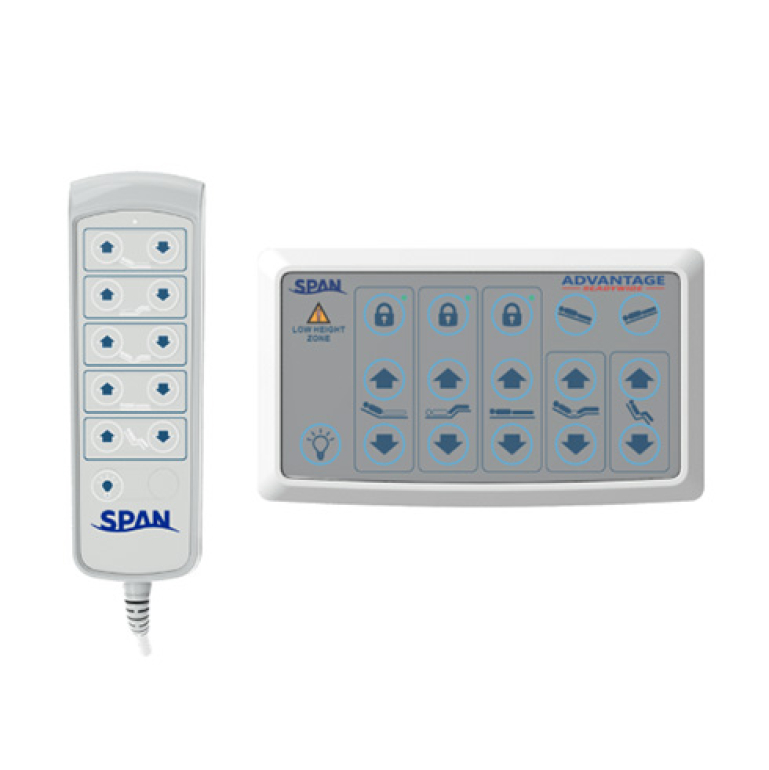

  • Staff Controls with Lockout: Foot-end controls for caregivers to manage all adjustments securely.

Specifications

Prod Spec Prod Spec Value
Height Floor to Mattress Support 7-7/8" – 31"
Deck Angles – Back Elevation 0 – 70°
Deck Angles – Knee Elevation 0 – 30°
Bed Length – Overall Length 82", 86", 90"
Bed Length – Sleep Surface 76", 80", 84"
Bed Width – Sleep Surface 35", 39", 42"
Weight of Bed (without accessories) 259 lbs / 118 kg (Standard model) 270 lbs / 123 kg
Safe Working Load 500 lb / 227 kg (Standard model) 650 lb/ 295 kg (P

Warranty

Prod Spec Prod Spec Value
Welds 15 years
Frame 10 Years
Mechanical 5 Years
