SPAN Encore Bed

span encore bed shown in room
span encore controllers shown
span encore shown in up position
span encore bed shown in room thumbnail
span encore controllers shown thumbnail
span encore shown in up position thumbnail
×
1 / 3

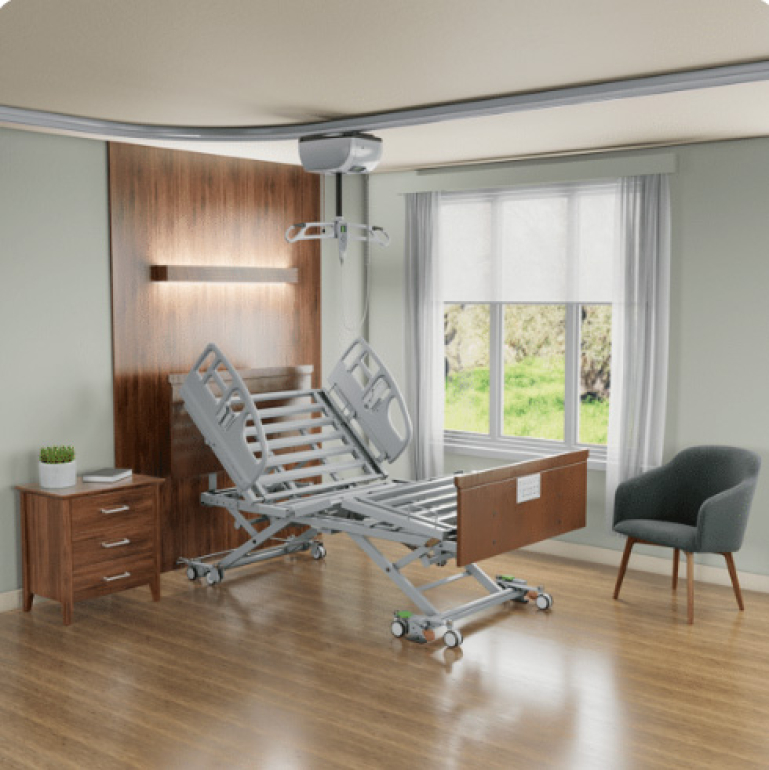

span encore bed shown in room
2 / 3

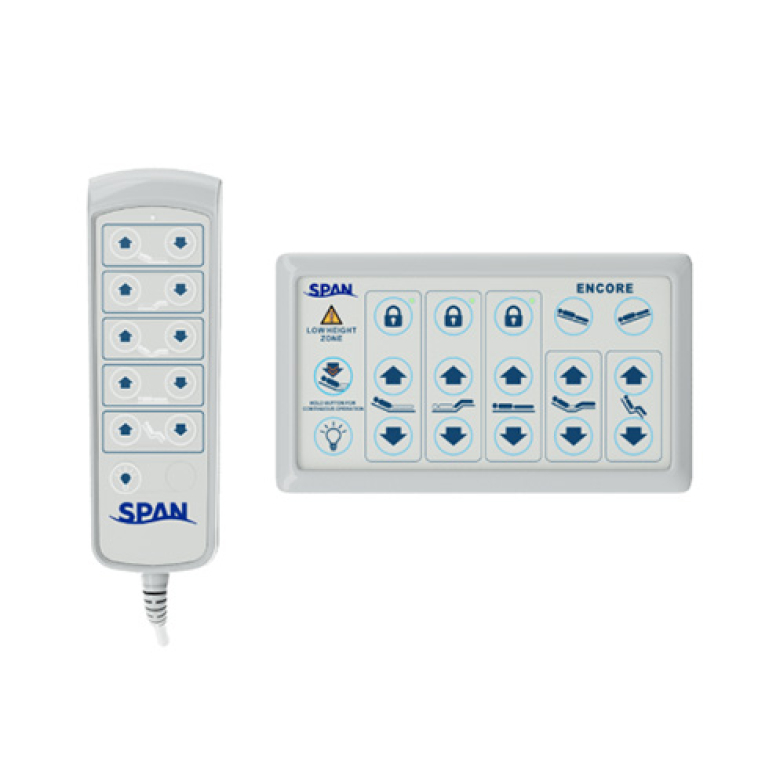

span encore controllers shown
3 / 3

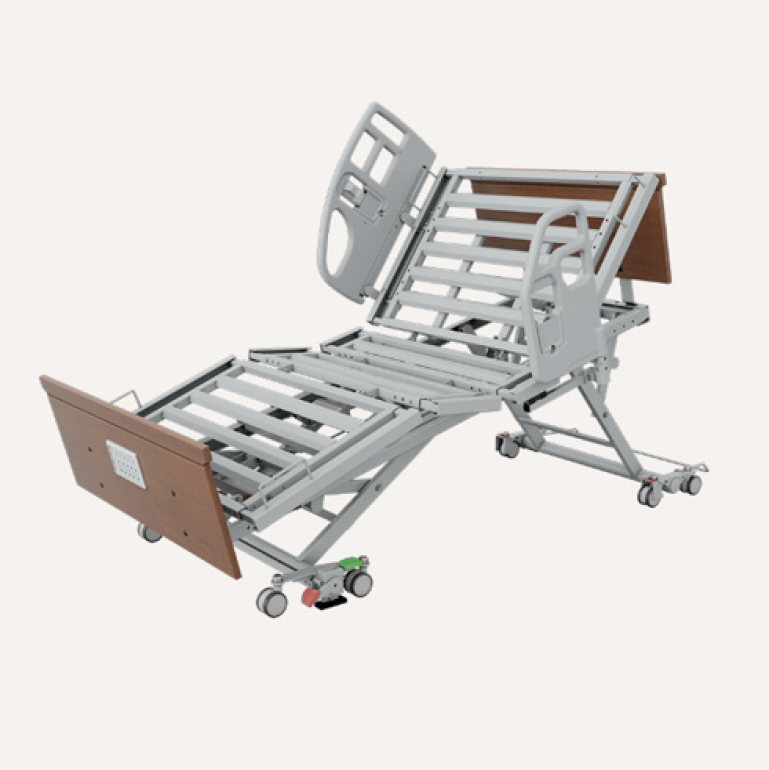

span encore shown in up position

span encore bed shown in room thumbnailspan encore controllers shown thumbnailspan encore shown in up position thumbnail

Premium full-electric bed with StayPut™ frame, ultra-low height, and one-button Trendelenburg. Ideal for long-term or homecare use. Expandable width and optional features available.  View more

Product Order Request

The Span Encore Bed is an advanced, full-electric hospital bed designed for maximum safety, adjustability, and caregiver convenience. Ideal for long-term care or home use, the Encore offers a variety of positioning options with effortless height adjustments and a one-button Trendelenburg feature. Its ergonomic design reduces fall risk with ultra-low positioning and enhances patient care with smooth, quiet operation.

The bed’s proprietary StayPut™ bed frame maintains the relative positioning of the head and foot sections during movement—helping reduce repositioning for both patients and caregivers. Optional features such as RollBack™ in place, integrated width expansion, and built-in scale make this a premium solution for versatile care environments.

Key Features:

  • StayPut™ Bed Frame: Keeps head and foot section alignment to reduce patient migration and repositioning.

  • RollBack™ in Place: Minimizes friction and shearing during head elevation.

  • Adjustable Height: Ultra-low 7" to 30" height range for safety and accessibility.

  • Integrated Width Expansion: Accommodates 35", 39", and 42" widths without tools (optional).

  • Weight Capacity: Supports up to 600 lbs.

  • One-Touch Trendelenburg/Reverse Trendelenburg: Simplifies patient positioning.

  • Built-in Bed Exit Alarm & Optional Scale: Adds security and clinical utility.

  • Foot-end Control Panel with Lockouts: Promotes safe operation by caregivers.

Specifications

Prod Spec Prod Spec Value
Height Floor to Mattress Support 7-7/8" - 31"
Deck Angles – Back Elevation 0 – 70°
Deck Angles – Knee Elevation 0 – 30°
Bed Length – Overall Length 82", 86", 90"
Sleep Surface – Retraction Travel 12"
Bed Length – Sleep Surface 76", 80", 84"
Bed Width – Sleep Surface 36", 39", 42"
Bed Width – With Side Rails 40-1/2", 43-1/2", 46-1/2"
Weight of Bed (without accessories) 253 lbs
Safe Working Load 600 lbs
Mobility (at any height) 7-7/8" - 31"
Bed End Panels Permanent or removable mounting
Ingress Protection Rating IPX4 (Electrical components IP66)
Electric Motors Four (4) DC self-lubricating linear actuators

Warranty

Prod Spec Prod Spec Value
Welds 15 years
Frame 10 years
Mechanical 2 years
