Pilot by Merits E604HD Curved Stair Lift

Pilot by Merits E604HD Heavy-Duty Curved Stair Lift

The Pilot by Merits E604HD Curved Stair Lift combines acustom-built curved rail system with an increased 350 lb. weightcapacity. It is designed for staircases with turns, curves, changesin direction, or intermediate landings where a standard straight stair liftcannot be used.

Each E604HD installation is configured around the individual staircase,providing a personalized accessibility solution for the home. Smooth startand stop operation, RF remote controls, a folding seat and footrest, andmultiple built-in safety systems help make everyday travel between floorscomfortable and convenient.

Heavy-Duty 350 lb. Capacity

The E604HD provides the flexibility of a custom curved stair lift with a350 lb. weight capacity. This higher-capacity configurationmakes it an option for users who need more support than the standard E604curved stair lift provides.

• 350 lb. weight capacity for heavier-duty applications.
• Custom curved rail designed around the individual staircase.
• Designed for staircases with turns, curves and intermediate landings.
• Supports stair inclines of up to 52 degrees.

Custom Rail Designed for Your Staircase

Curved staircases require a rail system that follows the specific shape ofthe stairs. The E604HD uses advanced rail manufacturing technology to createcurved sections designed around the staircase while minimizing rail jointsfor a smoother riding experience.

The final rail design depends on the home's staircase, including its turns,landings, incline and available space.

Comfortable and Convenient Everyday Use

• RF remote controls allow the stair lift to be called or parked from another location.

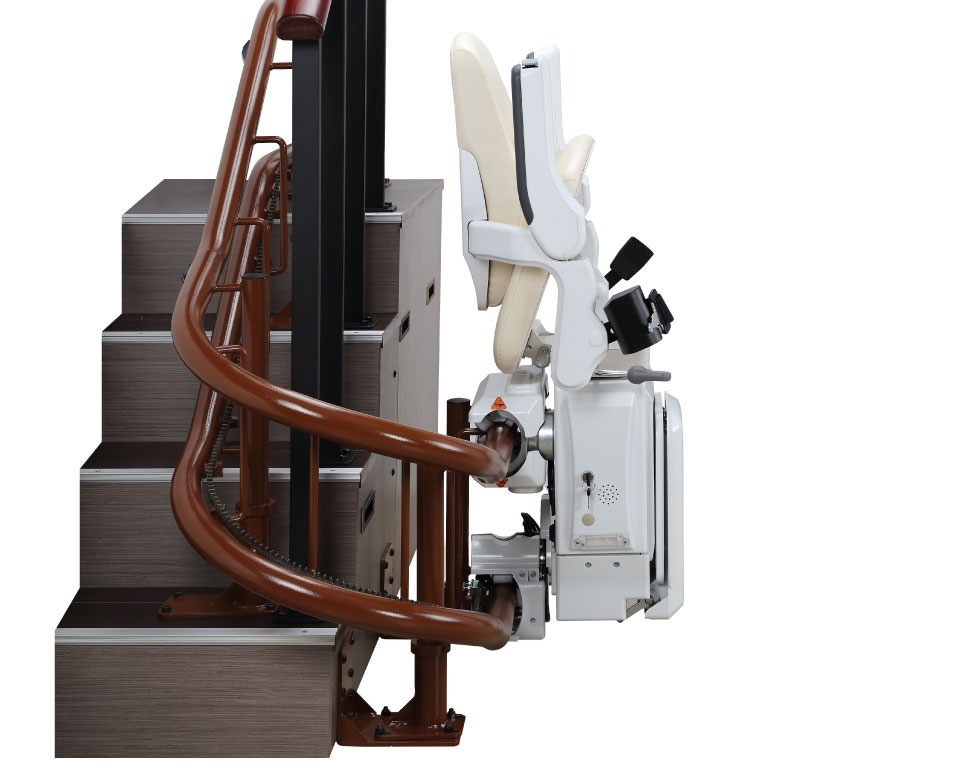

• Synchronous folding seat and footrest fold together to help preserve usable stairway space when the lift is not in use.
• Smooth start and stop operation helps provide a comfortable ride without abrupt movement.
• Swivel seat with locking catch helps make getting on and off the stair lift easier.
• LED carriage lighting helps illuminate the staircase and surrounding area.

Built-In Safety Features

The E604HD incorporates multiple safety systems to help provide predictableand dependable operation during everyday use.

• Obstacle sensor safety interlock helps stop the carriage if an obstruction is detected on the staircase.
• Seat-position safety interlock prevents operation unless the seat is returned to the proper riding position.
• Locking swivel seat helps provide a stable position when entering or exiting the lift.
• An optional overspeed governor is available for additional mechanical braking protection.

E604HD Curved Stair Lift at a Glance

For complete technical information, see the Specificationstab above.

Available E604HD Options

Because every curved stair lift installation is customized, available optionsand the final configuration will depend on the staircase, available space andthe needs of the user.

• Optional deluxe seat for an alternative seating configuration.
• Custom rail configuration based on the turns, landings and shape of the staircase.
• Additional installation options may be available depending on the home and staircase layout.

E604 or E604HD: Which Curved Stair Lift Is Right for You?

Both models provide a custom curved rail solution for complex staircases.The primary difference is capacity. The standard E604 supports up to265 lbs., while the E604HD increases capacity to350 lbs..

MedServ can help determine which configuration is appropriate based on theuser, staircase and installation requirements.

Professional Curved Stair Lift Installation from MedServ

A curved stair lift requires precise evaluation and planning because the railmust be configured specifically for the staircase. MedServ can evaluate yourstairs, help select the appropriate Pilot stair lift configuration, andprofessionally install the completed system in your home.

Final rail design, stair lift configuration and available options depend on the staircase, home layout and installation requirements.
