From Merits Health Products | Item #: E604
❮
❯
Custom curved stair lift for staircases with turns or landings, featuring a 265 lb. standard capacity, RF remote controls, folding seat and footrest, smooth operation, and built-in safety systems. View more
Pilot by Merits E604 Curved Stair Lift

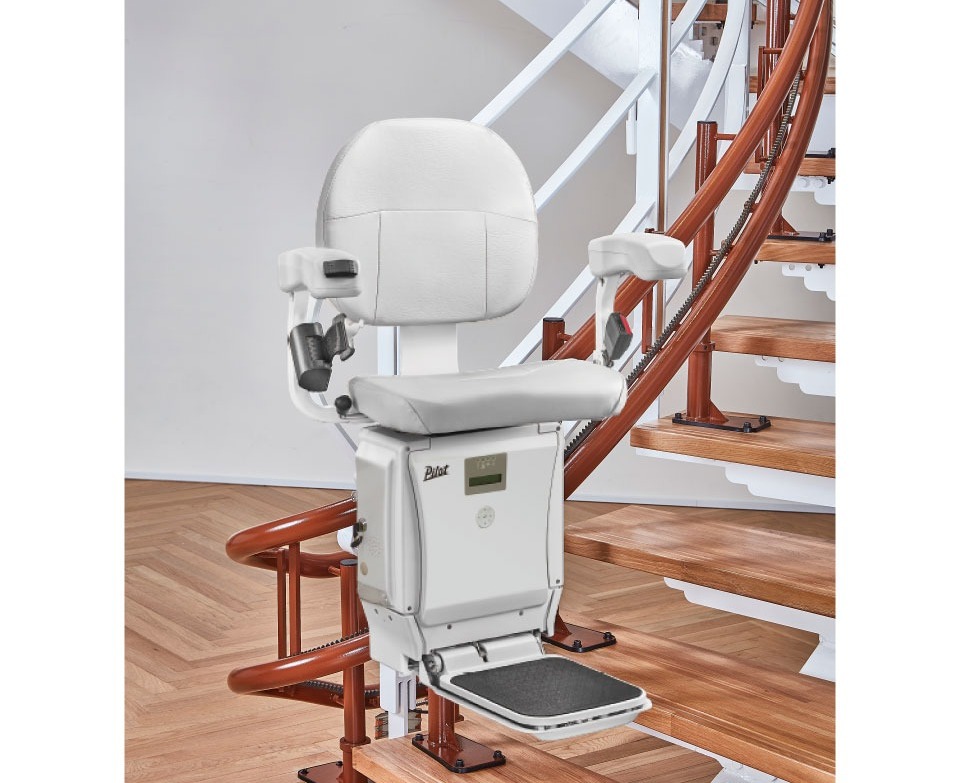

The Pilot by Merits E604 Curved Stair Lift is designed for staircases that turn, curve, change direction, or include intermediate landings. Unlike a straight stair lift, the E604 uses a custom rail system designed around the individual staircase to provide smooth, dependable travel between floors.
With a 265 lb. standard weight capacity, RF remote controls, synchronous folding seat and footrest, smooth start and stop operation, and multiple built-in safety systems, the E604 provides a comfortable accessibility solution for homes where a straight stair lift will not work.
Built for Curved and Complex Staircases
Every curved staircase is different. The E604 rail is configured specifically for the home's staircase, allowing the lift to follow turns, bends and landings while remaining positioned close to the stairs.
- Custom curved rail is manufactured for the individual staircase.
- Advanced 3D rail manufacturing minimizes rail joints to help provide a smoother ride.
- Suitable for staircases with turns, curves and intermediate landings.
- Maximum supported stair incline of up to 52 degrees.
Comfortable and Convenient Everyday Use
- RF remote controls allow the lift to be called or parked from another location.

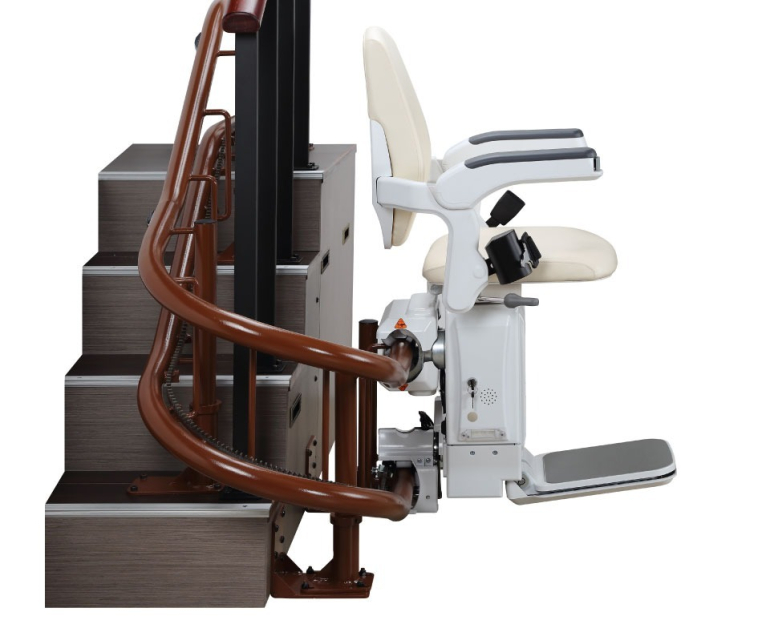

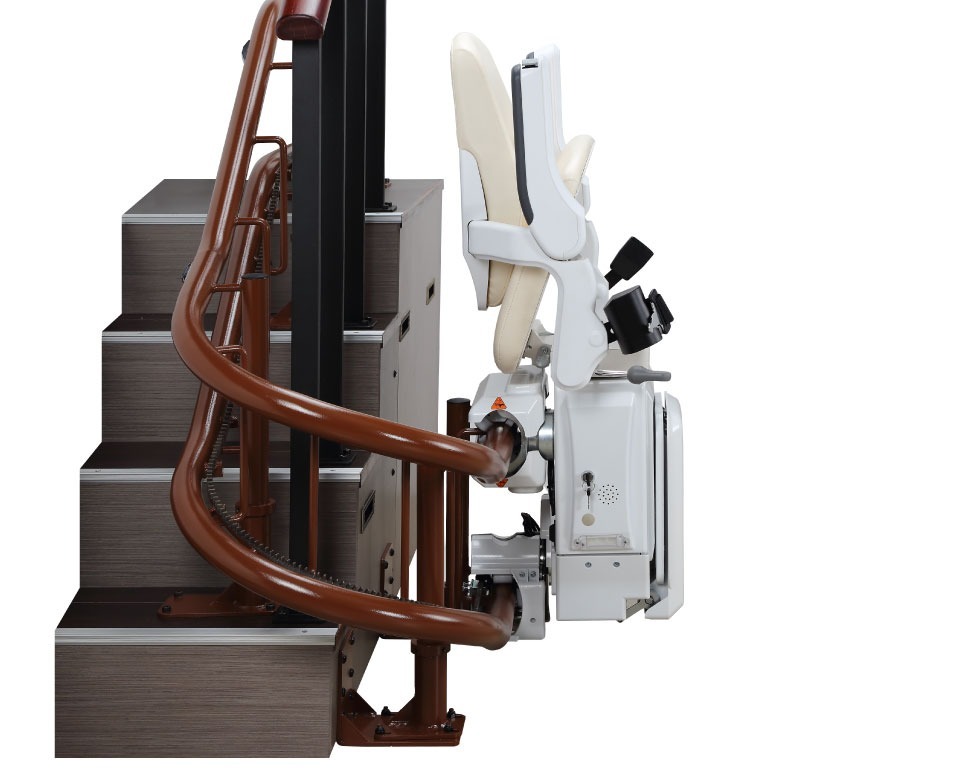

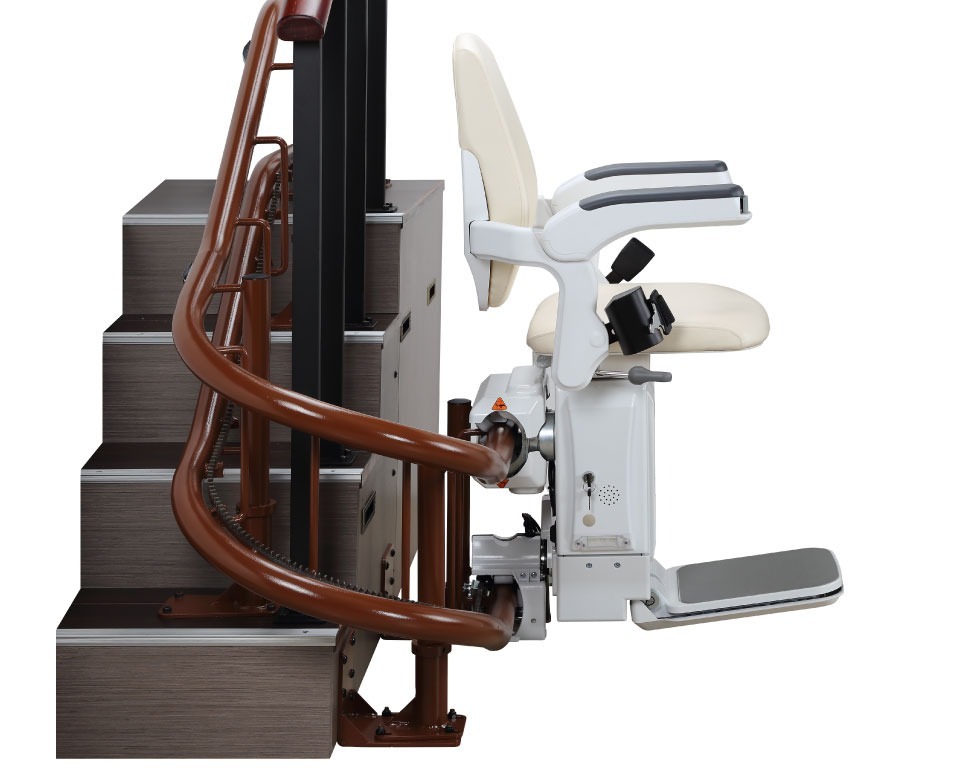

- Synchronous folding seat and footrest fold together to help keep the staircase clear when the lift is not in use.
- Smooth start and stop operation provides a more comfortable ride.
- Swivel seat with locking catch helps make getting on and off the lift easier.
- LED carriage lighting helps illuminate the staircase and surrounding area.
Built-In Safety Features
The E604 incorporates several systems designed to help provide safe and predictable operation during everyday use.
- Obstacle sensor safety interlock helps stop the carriage if an obstruction is detected.
- Seat-position safety interlock prevents operation unless the seat is returned to the proper riding position.
- Locking swivel seat provides a stable position for entering and exiting the lift.
- An optional overspeed governor is available for additional mechanical braking protection.
E604 Curved Stair Lift at a Glance
| Stair Lift Type | Custom Curved Stair Lift |
| Weight Capacity | 265 lbs. |
| Maximum Stair Incline | Up to 52° |
| Travel Speed | 20 ft./min. |
| Drive System | Rack & Pinion |
| Power | Rechargeable 24V battery system |
For complete technical information, see the Specifications tab above.
Available E604 Options
Because every curved stair lift installation is customized, the final configuration will depend on the staircase, available space and the needs of the user.
- Optional deluxe seat for an alternative seating configuration.
- Optional HD carriage configuration available for appropriate applications.
- Custom rail configuration based on the shape and layout of the staircase.
- Additional installation options may be available depending on the home.
Professional Curved Stair Lift Installation from MedServ
A curved stair lift requires careful evaluation and measurement because the rail must be configured specifically for the staircase. MedServ can evaluate your stairs, help determine the appropriate Pilot stair lift configuration, and professionally install the completed system in your home.
If you are unsure whether your staircase requires a straight or curved stair lift, MedServ can help determine which option is appropriate.
Need a stair lift for a curved or multi-landing staircase?
Contact MedServ to discuss your staircase and request a stair lift quote.
Urbana: (217) 355-7971
Palatine: (847) 991-3600
Final rail design, stair lift configuration and available options depend on the staircase, home layout and installation requirements.
Specifications
| Prod Spec | Prod Spec Value |
|---|---|
| 265 lbs. | -1 |
| 52° | -1 |
| 20 ft./min. | -1 |
| 617 ft. | -1 |
| Rack & Pinion | -1 |
| 950W, 24V DC | -1 |
| 24V / 9Ah × 2 | -1 |
| Input: 100–240 VAC, 50–60 Hz; Output: 2A / 24V DC | -1 |
| 116.5 lbs. | -1 |
| 16 × 17 × 16 in. | -1 |
| 23–27 × 20 × 22 in. | -1 |
| 14 × 23 × 38 in. | -1 |
| Stair Lift Type | Custom Curved Stair Lift |
| Weight Capacity | 265 lbs. |
| Maximum Incline | 52° |
| Travel Speed | 20 ft./min. |
| Travel Per Charge | 617 ft. |
| Drive Method | Rack & Pinion |
| Motor | 950W, 24V DC |
| Battery | 24V / 9Ah × 2 |
| Charger | Input: 100–240 VAC, 50–60 Hz; Output: 2A / 24V DC |
| Carriage Weight | 116.5 lbs. |
| Standard Seat Dimensions | 16 × 17 × 16 in. |
| Deluxe Seat Dimensions | 23–27 × 20 × 22 in. |
| Carriage Dimensions | 14 × 23 × 38 in. |
- RF remote controls allow convenient call and park operation
- Synchronous folding seat and footrest help keep the staircase clear when not in use
- Smooth start and stop system provides a comfortable ride
- Custom curved rail system is manufactured to fit the individual staircase
- Advanced 3D rail manufacturing minimizes rail joints for smoother travel
- Swivel seat with locking catch helps make entry and exit easier
- Obstacle sensor safety interlock helps prevent collisions
- Seat-position safety interlock prevents operation when the seat is turned
- LED carriage light helps illuminate the staircase and surrounding area
- Optional deluxe seat and HD carriage configuration available
