The Maxima Scooter offers heavy-duty performance at an exceptional value. Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments. Contact or visit a MedServ location in Chicago or Central Illinois to test drive!  View more

Product Order Request

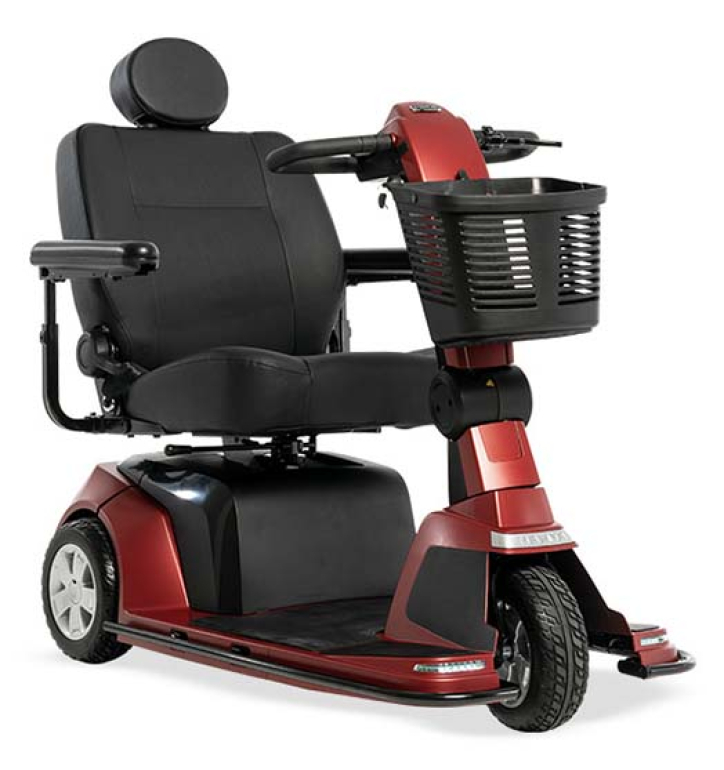

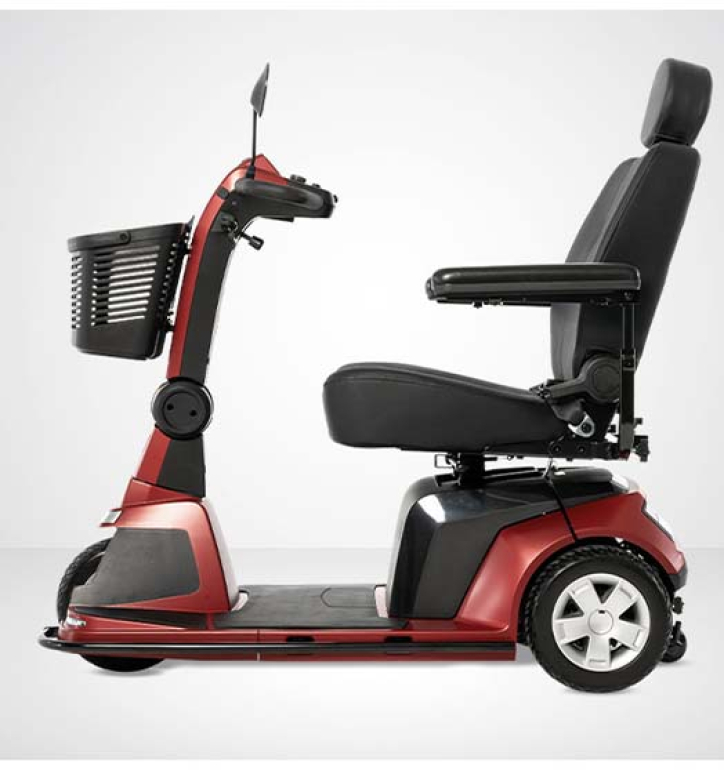

Maxima 3-Wheel

Pride’s toughest mobility scooter

This scooter has a new look. Strength and confidence define the Maxima 3-Wheel Mobility Scooter. In Pride's lineup, it has the greatest weight capacity of 500 pounds and you get mileage of up to 19.8 miles per charge. Even with those impressive range specs, Pride’s industry-leading engineers managed to squeeze top speeds of 5.8 mph in the Maxima 3-Wheel.

When it comes to rider experience, we’ll start with the 22-inch captain's style seat with headrest. Adjustable armrests and a limited recline of up to 106 degrees let you find the perfect upright position for your ideal comfort. Make MedServ your Chicago Area and Central Illinois Maxima scooter sales and service provider.

maxima 3 wheel scooter features image

Can a heavy-duty mobility scooter also perform?

Short answer? Absolutely.

Three wheels give you some of the best maneuverability in the heavy-duty mobility scooter class. With a 49-inch turning radius, you can easily navigate tighter corners.

Solid tires that can never go flat. The Maxima 3-Wheel makes it simple to start your journey with a 5-point swivel seat that turns you, the rider, toward the side of your mobility scooter to easily step off. On top of that, low deck clearance puts your feet closer to the ground.

It’s fully loaded with more standard features than before, including a rearview mirror, infinite position tiller lever, USB charger, a seatbelt and a full LED light package featuring a front headlight, turn signals, and rear taillights.

Pride Mobility pushes the limits of what consumers should expect from their mobility scooter with the Maxima 3-Wheel.

This mobility scooter will take you to new heights

Just when your thought the features couldn't get better, you have the option to upgrade your mobility scooter by adding a power elevating seat. The optional power elevating seat can help you gain an additional 6.25" of height. Now, you can access top cabinets, countertops, and other out-of-reach items.

Come to a MedServ Location near you today to learn how the Maxima 3-Wheel gets you moving.

maxima 3 wheel scooter specifications image

Maxima 3-Wheel Features:


*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments

  • 500 lbs. weight capacity
  • Up to 5.8 mph
  • 49" turning radius
  • Up to 19.8 miles per charge
  • Delta tiller with ergonomic wraparound handles lets you operate the scooter with one hand
  • Non-scuffing, flat-free tires

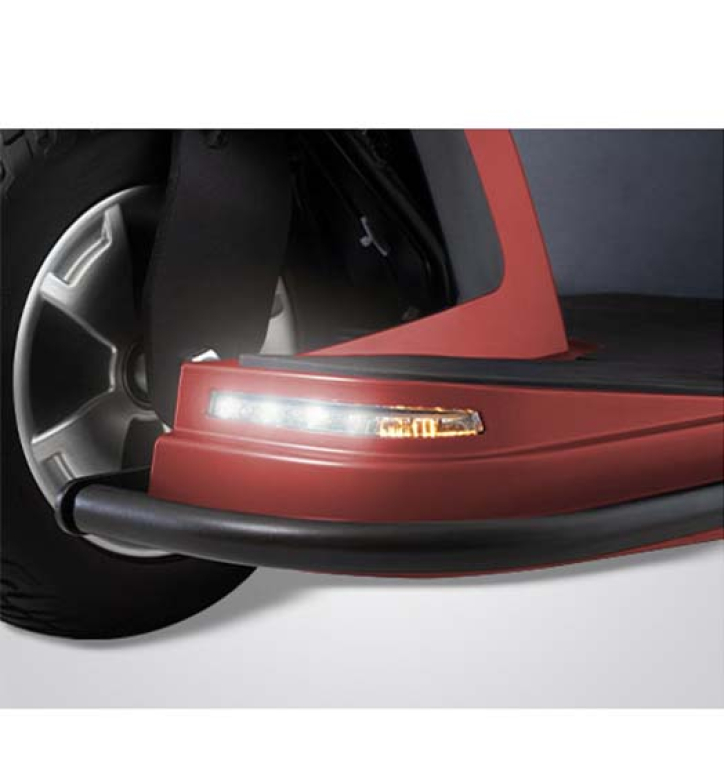

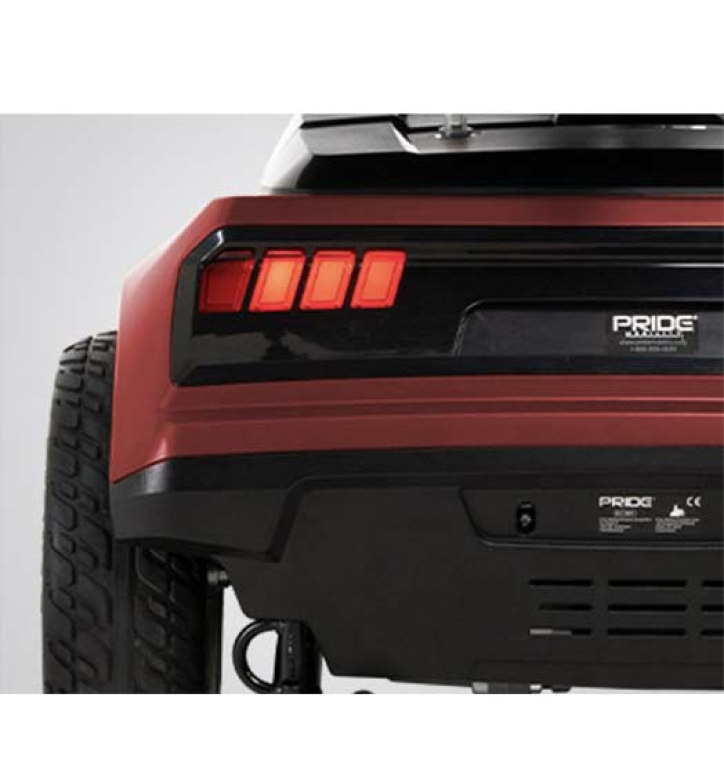

  • Full LED light package include front headlights, turn signals, and rear taillights
  • New! Infinite position tiller lever (mech lock)
  • Durable and stylish front and side bumper are designed to reduce and prevent damage to your scooter shroud
  • XLR battery charger on tiller
  • 22"x18"-20" High-back black vinyl, depth adjustable, limited recline, 4-point swivel seat and 7" headrest with 3" of adjustments
  • Standard front basket

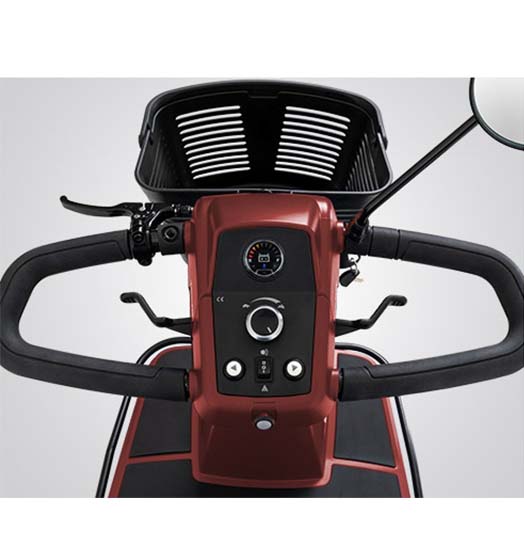

  • User-friendly console features ambient voltmeter, horn button, light switch, on/off key switch, speed control and turn signal button
  • USB mobile device charging port built into tiller for convenient charging of smart phones and portable electronic devices
  • Optional power elevating seat provides an additional 6.25" of height to access cabinets, countertops and other out-of-reach items
  • K0802 Group 1 Very Heavy Duty
Prod Spec Prod Spec Value
Front Tire 3" x 10" solid
Rear Tires 4" x 10" solid
maximum Speed Up to 5.3 MPH
Ground Clearance 4.25 at mid-frame
Turning Radius 50.5"
Overall length 46"
Overall width of Base 25.5"
Seat-to-Ground Height Range 22.5" – 24.5"
Seat Type Deluxe Contoured Medium-back (22” x 18”)
Specification Weight 171 lbs.
Seat-to-Deck Height Range 16" – 18"
Battery Weight 33 lbs. each (NF-22), 24 lbs. each (U-1)
Battery Requirements (2) NF-22 or (2) U-1 (power elevating seat)
Maximum Range Per Charge Up to 18 miles, U-1 (power elevating seat) up to 9.6 miles
Battery Charger Off-board, 5A (U-1)
Maximum Weight Capacity 500 lbs.
Weight of Heaviest Piece 76 lbs. (Rear section)
Standard Body Colors Candy Apple Red, Viper Blue
  • Lighting: Large front headlight for increased visibility in low-light settings with directional signals
  • Easily Adjustable Tiller: Adjust steering and controls to your desired position
  • Bumper Protection: Durable and stylish front and rear polyurethane bumper
  • Comfort Seat: Medium-back seat with swivel
  • 500 lbs. weight capacity
  • Up to 5.3 mph maximum speed
  • 50.5" turning radius
  • Up to 18 miles per charge
  • 22" x 18" Deluxe contoured, medium-back, black vinyl seat
  • 5-amp, off-board battery charger
  • Black, flat-free, non-scuffing tires
  • Standard front basket
  • Ultra heavy-duty drivetrain with 110-amp controller
  • Easily accessible tie down points (for transport of unoccupied scooter)
  • User friendly console
